I/O Terminal Breakout Cable
£55.00
I/O Terminal

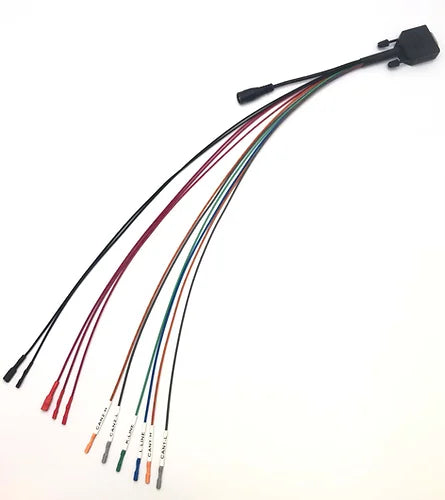

I/O Terminal Breakout Cable
for use with I/O Terminal programming tool. Used for easy connection to different ECUs for a D-Sub 9-way connector.
For further info see I/O Terminal.
- DC Power connection 5.5mm X 2.1mm Female
- Cable Markers make selecting cables easy without needing to refer to a colour chart.
- +12V and GND connections both with 2x large and 2x small connectors
- Total Length: (Approx) 50cm
- HIGH-QUALITY CABLE
Pinout as below:
- 1 – CAN1-H
- 2 – CAN1-L
- 3 – NC
- 4 – K-Line
- 5 – GND
- 6 – L-Line
- 7 – CAN2-H
- 8 – CAN2-L
- 9 – +12V
