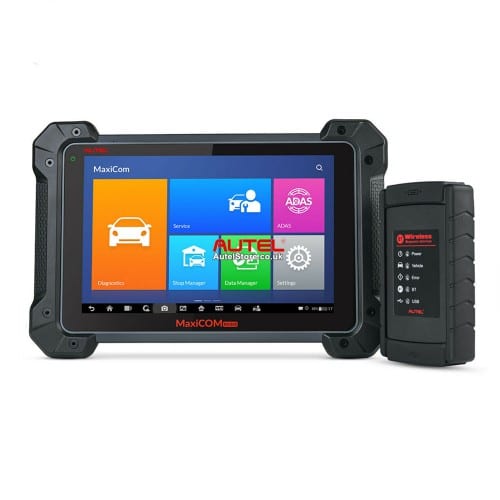

Autel Maxicom MK908

Autel MK908 Basic System Diagnostics:

Autel MK908 support full OBDII system diagnoses, offer the user the ability of reading/clearing DTCs, viewing live data stream for all system.

1) Read Codes — displays detailed info of DTC records retrieved from the vehicle control module.

2) Erase Codes – erases DTC records and other data from the ECM.

3) Live Data – retrieves and displays live data and parameters from the vehicle’s ECU.

4) Vehicle Info  – Generic OBD II operations for retrieving OBD2 vehicle diagnostic information.

5) Active Test – provides specific subsystem and component tests.

MK908 Support Special Functions

TPMS: Monitors air pressure in the tires

Oil Reset: Reminds you to change the oil when required.

ABS: Reads and clears anti-lock braking system problems.

EPB: Reads, clears and offers electronic park braking on flat roads.

BMS: Shows all the information related to the battery management system.

DPF: Shows errors in the DPF system (removes soot from exhaust system).

IMMO: Used for enhancing car security by serving as a code that starts the engine.

Active test: for figuring out whether a specific subsystem or component in vehicles goes well.

Autel MK908 With J2534 For ECU Programming & Coding

The diagnostic tool can replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues.

Since the introduction of OBD II and leading up to modern Hybrids and EVs, computers and software in cars have been expanding at an exponential rate. In-car software is becoming one of the leading needs for service, and updating software may be the only way to fix some of these issues:

• -Drivability
• -Fuel Efficiency
• -Power Loss
• -Fault Codes
• -Durability of Mechanical Parts

The Programming and Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements.

NOTE: The programming function can only be applied through connection with the J2534 programming device (Autel MaxiFlash Elite), which serves as a Pass-Thru interface to establish communication with and transfer data to the vehicle’s ECU.

Additional Features and Functions

To well serve the users, the diagnostic tool is equipped with a rich array of features and functions in addition to the Diagnostic and Service functions, including Remote Desk, MaxiFix, Shop Manager, Digital Inspection, MaxiScope, etc.

1) Remote Desk: With the simple, fast and secure remote control interface, you can receive ad-hoc remote support from Autel’ s support center, colleagues, or friends, by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.

2) MaxiFix: This is an additional feature in the cloud which enables users to network and access a database of procedures, repair and diagnostic tools. You are able to interact with fellow technicians and share knowledge via MaxiFix.

3) Digital Inspection & MaxiScope: The diagnostic scan tool can also be used in conjunction with the automotive oscilloscope Autel MP408 to perform electrical and electronic circuit testing and monitor signal activity, and it also supports performing a close vehicle inspection with the Autel digital inspection camera MV105/MV108.

MK908 Support Language:

English, Chinese Simplified, Chinese Traditional, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Arabic, Russian.

Autel MK908 Support Vehicle List:

Chrysler, Dodge, Ford, GM, Jeep, Abarth, Alfa, Citroen, Fiat, Lancia, Opel, Peugeot, Porsche, Renault, Saab, Vauxhall, Volvo, Aston Martin, Audi, Bentley, Benz, Sprinter, BMW, Bugatti, Ferrari, Jaguar, Lamborghini, Land Rover, Maserati, Maybach, Mini, Rolls-Royce, Seat, Skoda, Smart, VW, VW CV, Dacia, Ford EU, LT3, Acura, Daewoo, Daihatsu, Honda, Hyundai, Hyundai CV, Infiniti, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Samsung, Scion, Ssang Yong, Subaru, Suzuki, Toyota, Isuzu, Mahindra, Perodua, Proton, TATA, HINO,UD, Fuso

Warranty & Updates:

• 1 Year warranty for any possible quality problems.
• 1 Year free updates online

Notice: Please close the anti-virus software in your PC when updating the device.

Specification:

• Operating System: AndroidTM 4.4.2, KitKat
• Processor: Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
• Memory: 2GB RAM & 64GB On-board Memory
• Display: 10.1-inch LED screen with 1920×1200 resolutions
• Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB);
• Camera (rear): 8.0 Megapixel, AF with Flashlight
• Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
• Input Voltage: 12 V (9-24 V)
• Power Consumption: 6.5 W
• Operating Temp: 0 to 50°C (32 to 122°F)
• Storage Temp: -20 to 60°C (-4 to 140°F)
• Housing: Strong plastic housing with protective rubber boot
• Dimensions(WxHxD): 312mm (12.28”) x 208mm (8.18”) x 36mm (1.41”)
• Weight (NW): 1.48kg (3.26 lb)

Autel MaxiCOM MK908 Support Protocols:

ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed, Middle speed, Low speed and Singlewide CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
